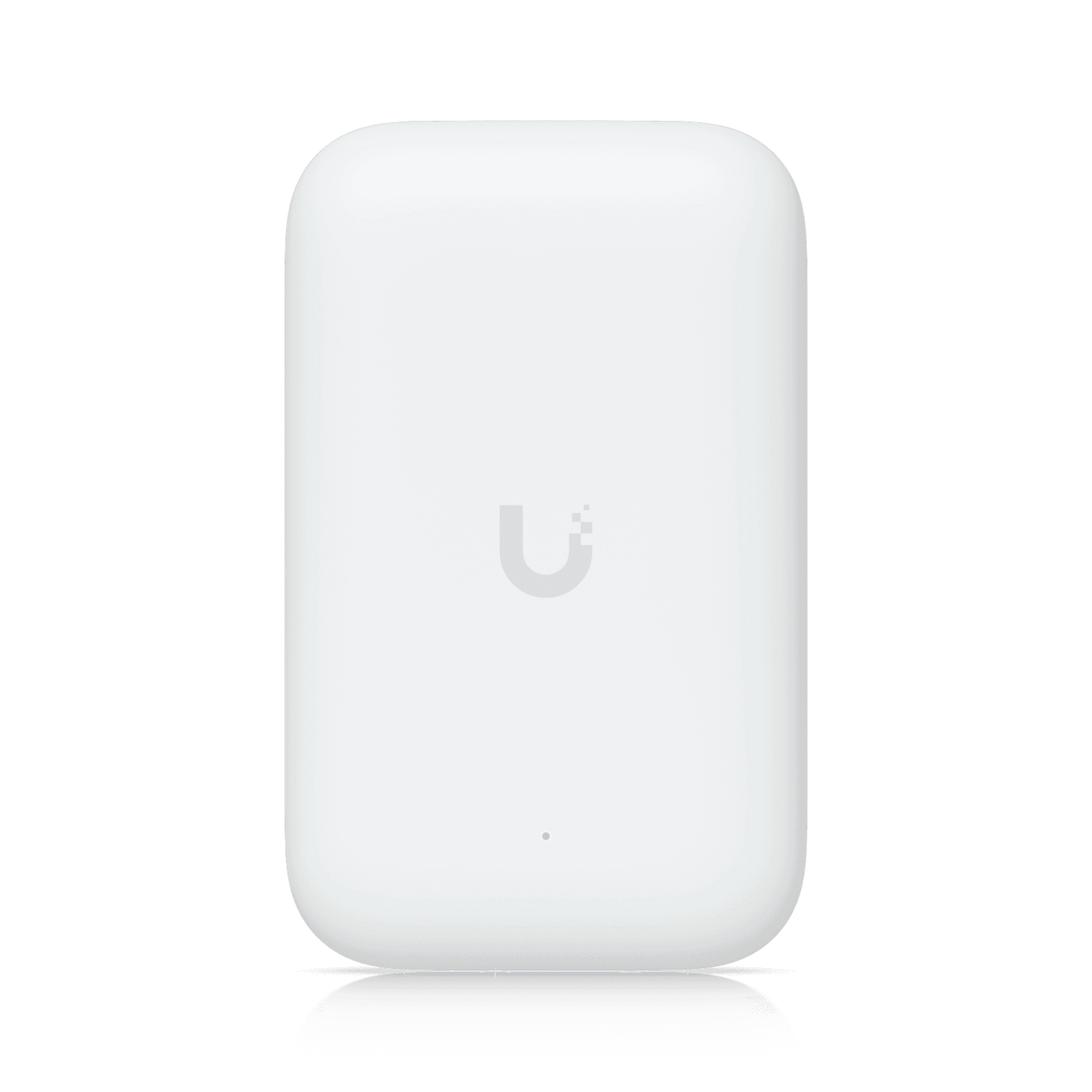

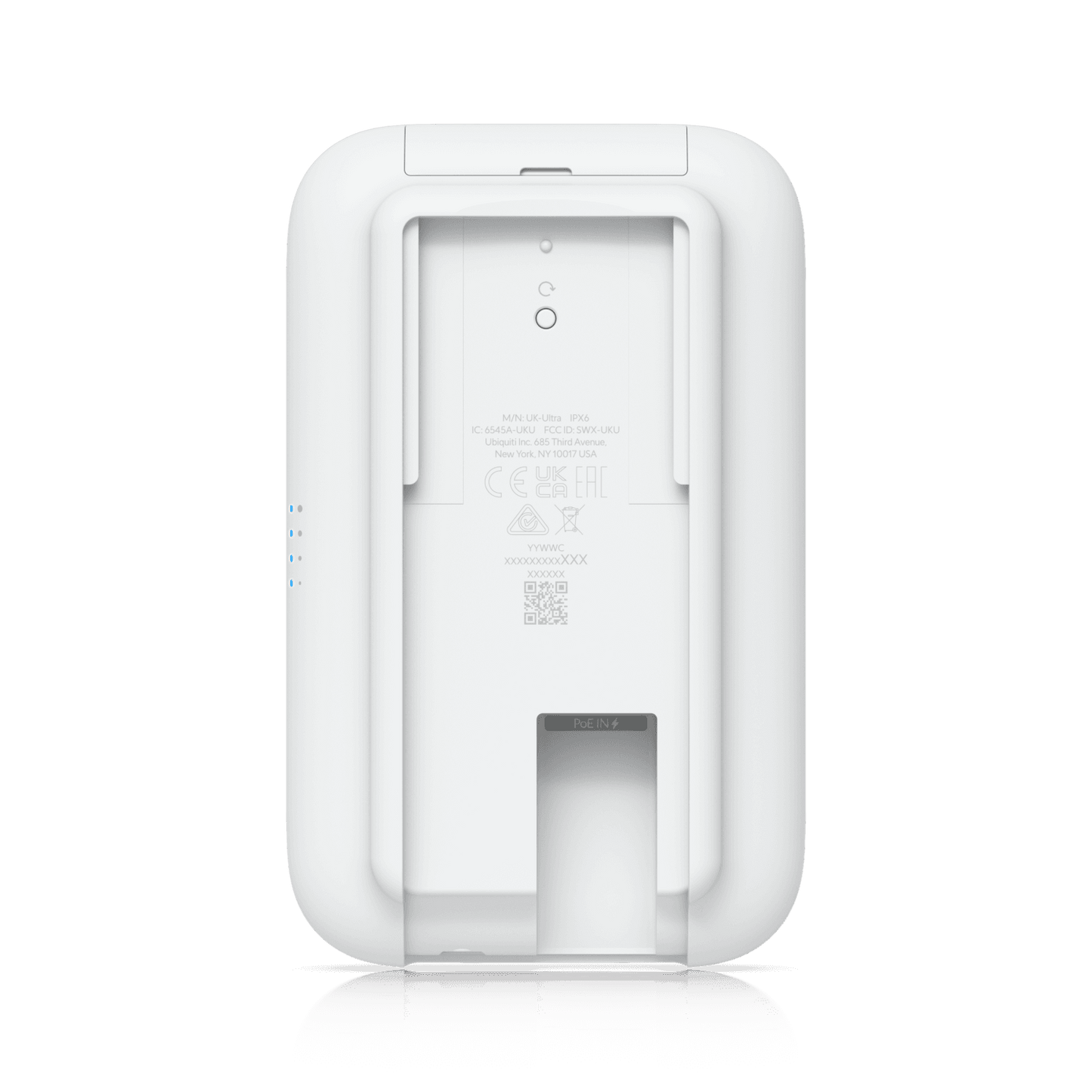

UK ULTRA ( Swiss Army Knife )

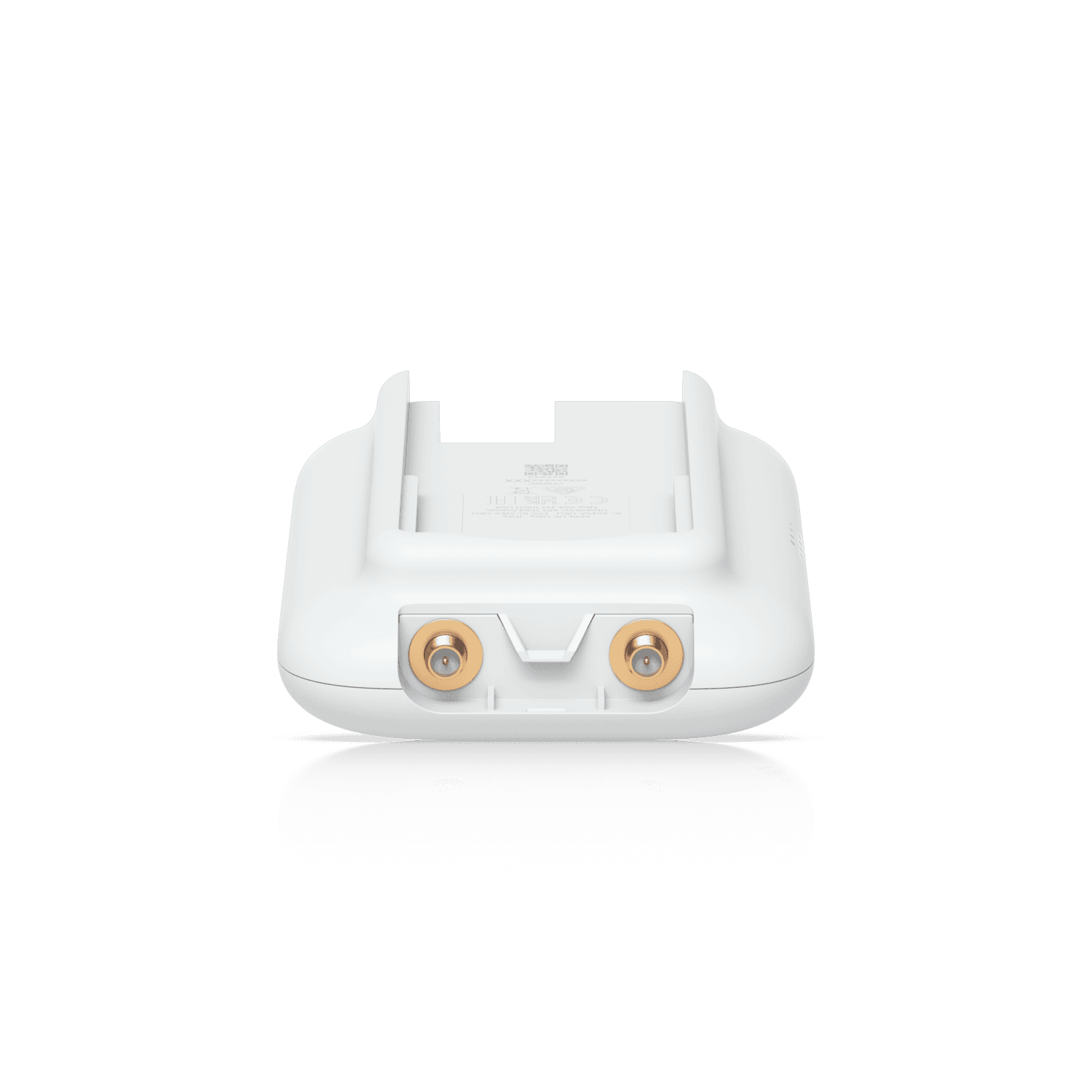

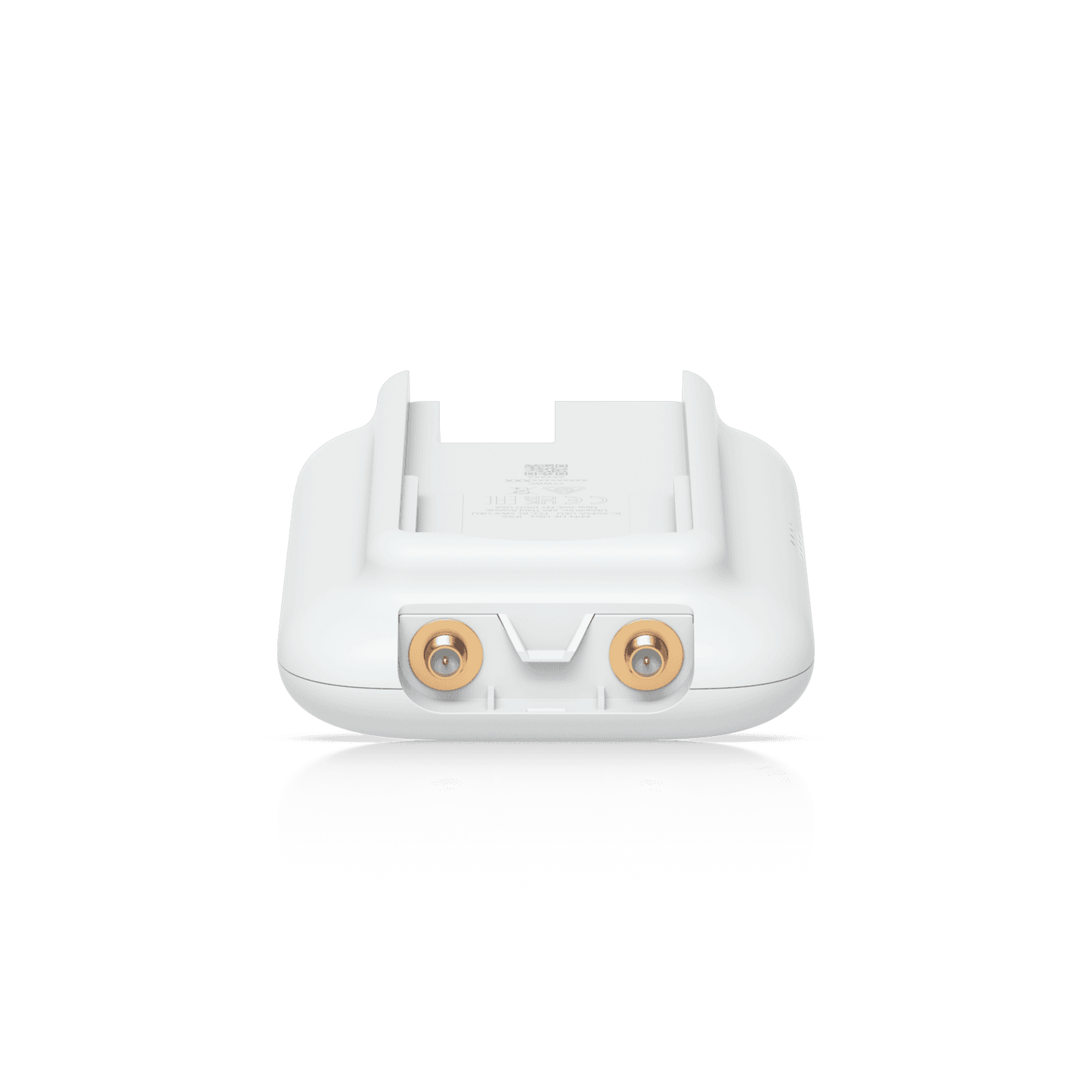

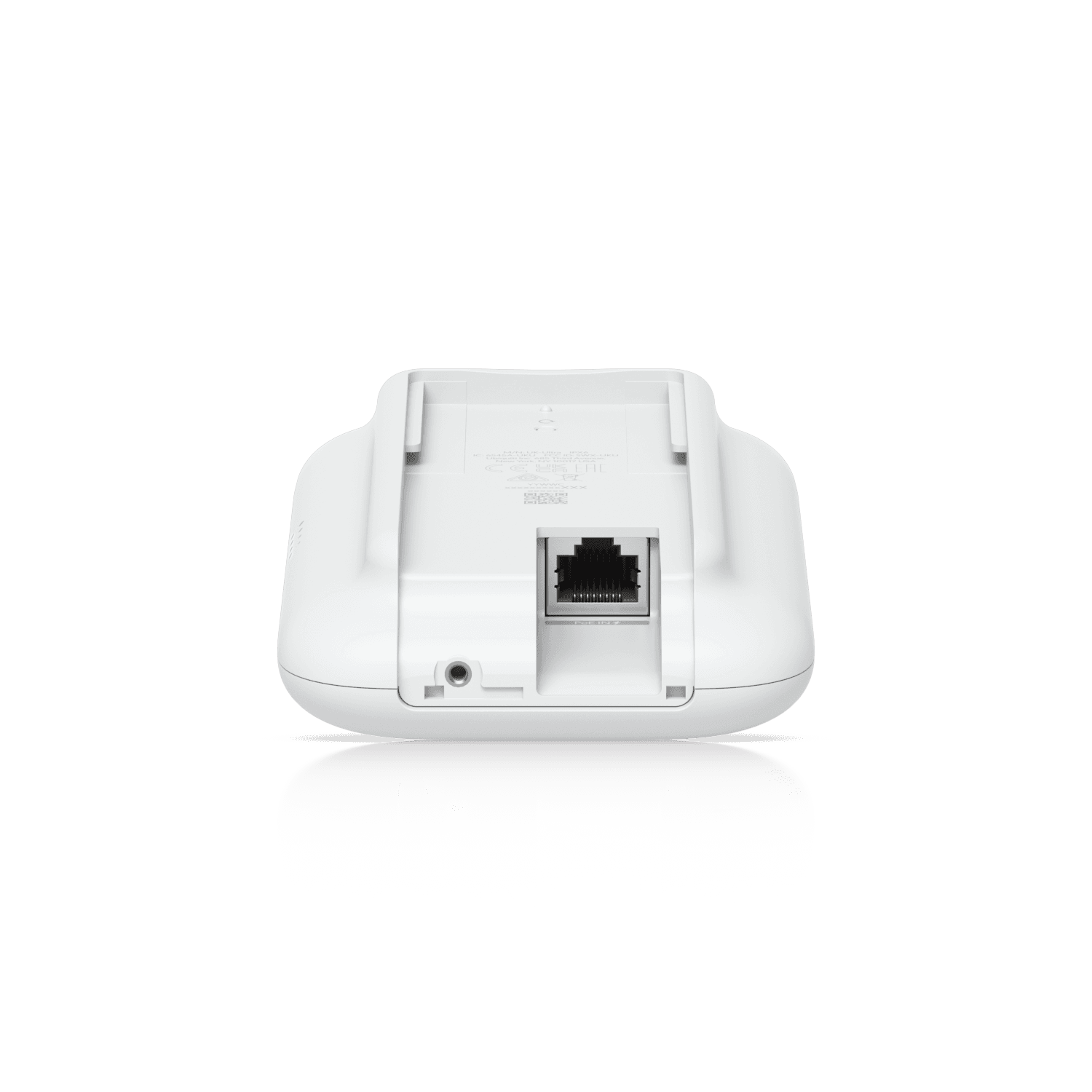

This compact WiFi 5 access point measures 137 × 84 × 34 mm (5.4 × 3.3 × 1.3"), supports 4 spatial streams, and provides coverage of up to 115 m² (1,250 ft²) with 200+ concurrent clients. It features a Gigabit uplink, PoE power, and flexible mounting options including ceiling, wall, pole, and table (mounts included, desktop stand optional), with IPX6 weatherproofing for indoor or outdoor use. Performance includes 2×2 DL MU-MIMO on both 5 GHz and 2.4 GHz bands, delivering data rates up to 866.7 Mbps on 5 GHz and 300 Mbps on 2.4 GHz, with antenna gains of 6.1 dBi (5 GHz) and 4.7 dBi (2.4 GHz) and a maximum transmit power of 20 dBm. Advanced wireless features include mesh support, band steering, fast roaming (802.11r/k/v), Passpoint (Hotspot 2.0), captive portal with custom branding, vouchers, payment-based authentication, guest isolation, PPSK, VLANs via RADIUS over TLS (RadSec), WiFi scheduling, and speed limiting. Hardware specifications include 8W max power consumption, 44–57V DC input, a single GbE RJ45 port, 173 g lightweight design, internal and external antenna support via RP-SMA connectors, and UV-stabilized polycarbonate enclosure. The device operates reliably in extreme conditions from -40°C to 60°C, supports global frequency ranges, is NDAA compliant, and is certified CE, FCC, IC, and Anatel, with management handled through the UniFi Network application (v7.5.187 or later).
