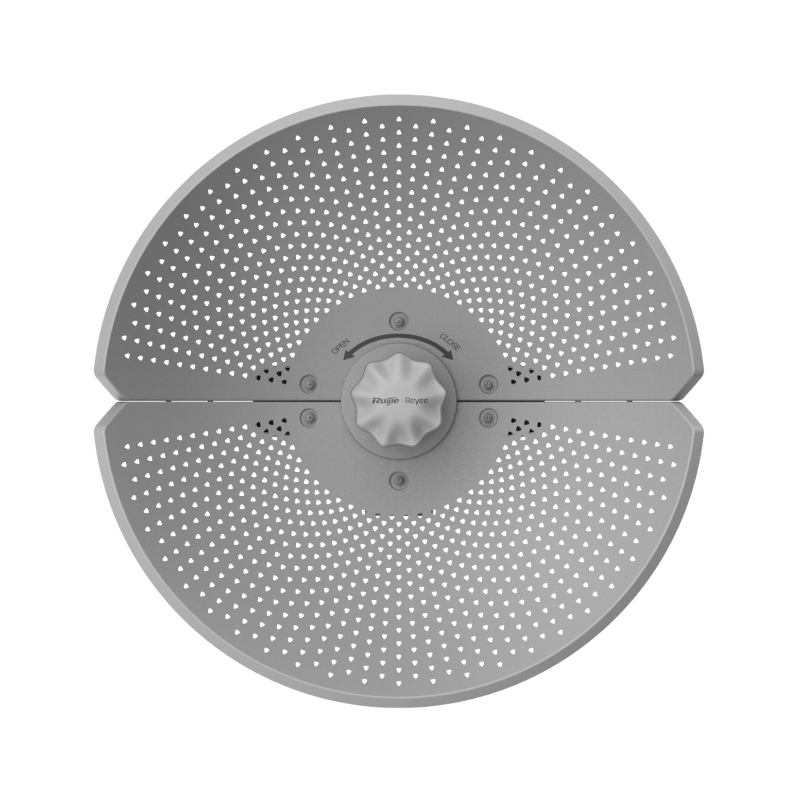

Ruijie Point to Point & Point to Multipoint Wireless Bridges
Ruijie Point to Point & Point to Multipoint Wireless Bridges
Couldn't load pickup availability
RG‑EST100‑E
Short‑range Point‑to‑Point (PTP) or **Point‑to‑Multipoint (PTMP) wireless bridge operating at 2.4 GHz with dual‑stream MIMO technology. Designed for outdoor connectivity up to ~500 m with stable throughput (~300 Mbps) and wide environmental tolerance. Factory‑paired or simple setup reduces installation complexity, and the IP55 weatherproof enclosure ensures reliability in outdoor conditions. Ideal for linking remote buildings, CCTV backhaul, or network extension without cables. Supports cloud monitoring and intuitive management via Ruijie Cloud/APP.
RG‑40G (Note: model details not widely listed)
Part of Ruijie’s wireless bridge family targeting versatile PTP/PTMP wireless connectivity solutions. Ruijie’s bridge portfolio delivers cloud management, robust long‑range links, and reliable outdoor performance — suitable for CCTV, WISP, or campus network backhaul where wiring is impractical.
RG‑AirMetro550G‑B
High‑performance Point‑to‑MultiPoint (PTMP) base station from the AirMetro series offering up to 867 Mbps in the 5 GHz band with support for 1 to 32 CPE links and cloud/cloud‑app management. Designed for wide outdoor coverage up to ~10 km, rugged IP55 protection, surge/ESD defenses, and easy pairing (one‑touch) for rapid deployment. Ideal for WISP networks, large CCTV systems, and distributed outdoor internet connectivity without fiber.
Wireless Bridge Feature Comparison
| Feature / Model | RG‑EST100‑E | RG‑40G | RG‑AirMetro550G‑B |
|---|---|---|---|
| Wireless Type | PTP / PTMP | PTP / PTMP (bridge family) | PTMP Base Station |
| Frequency | 2.4 GHz (802.11b/g/n) | Model‑dependent | 5 GHz (802.11ac) |
| Max Distance | ~500 m | Varies by antenna & model | Up to ~10 km |
| Throughput | Up to ~300 Mbps | Varies by model | Up to ~867 Mbps |
| Cloud Management | Yes | Yes (Ruijie Cloud) | Yes |
| Ports | 2× Ethernet | Model‑dependent | 2× GE RJ45 |
| Best For | Short‑range bridges, CCTV links | Flexible PtP/PtMP links | Long‑range outdoor coverage & WISP |
Use Case Summary
• RG‑EST100‑E – Compact 2.4 GHz bridge for short links (e.g., between nearby buildings, security cameras).
• RG‑40G – Part of Ruijie’s wireless bridge line‑up for PTP/PMP scenarios where different ranges and hardware options are needed (refer to Ruijie bridge portfolio).
• RG‑AirMetro550G‑B – Base station for high‑capacity, long‑distance outdoor point‑to‑multipoint deployments (WISP or campus coverage).
