Original price was: ₨ 153,500.₨ 144,999Current price is: ₨ 144,999.

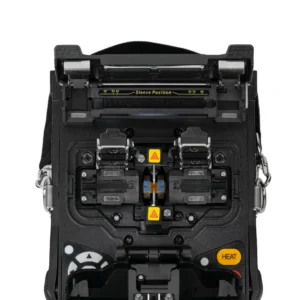

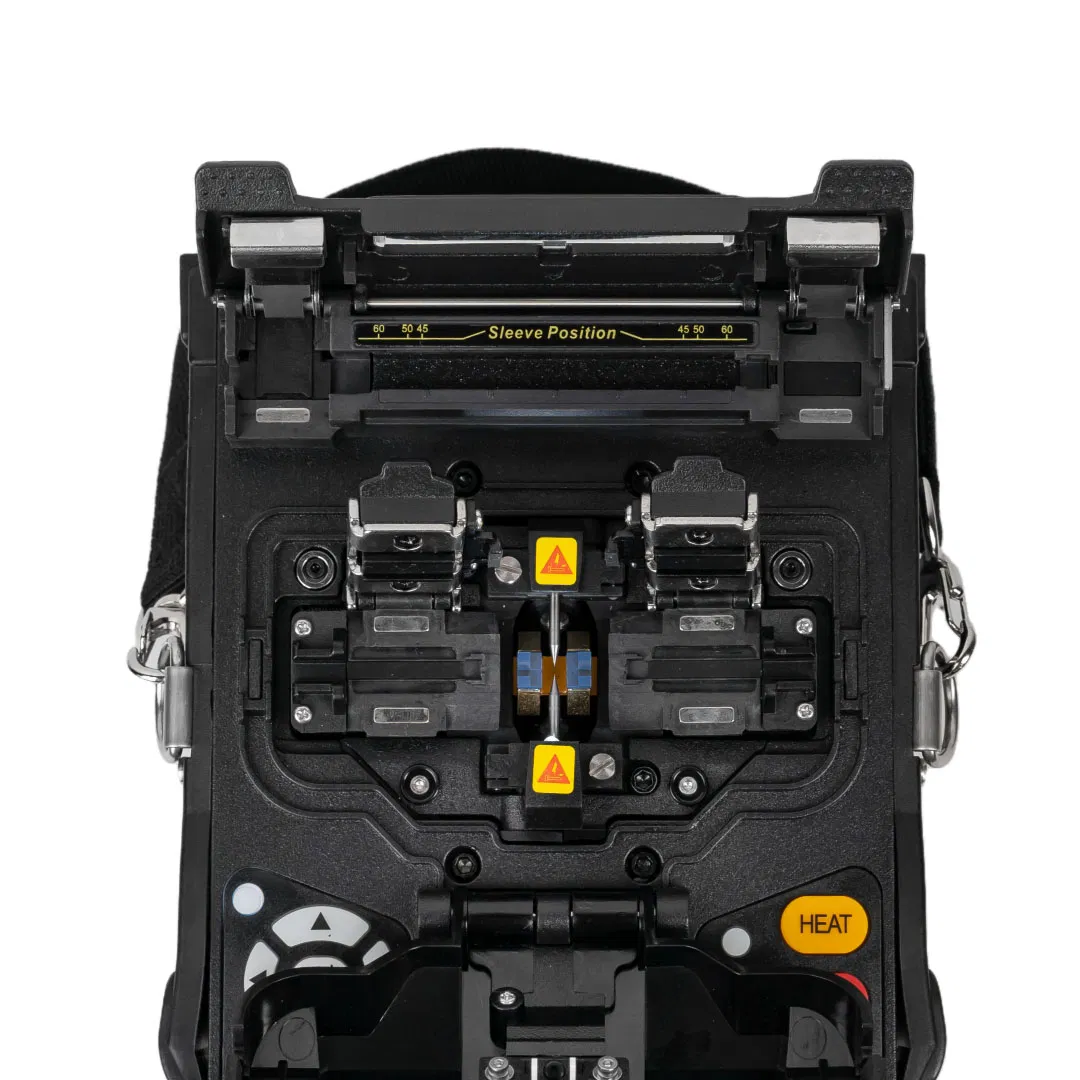

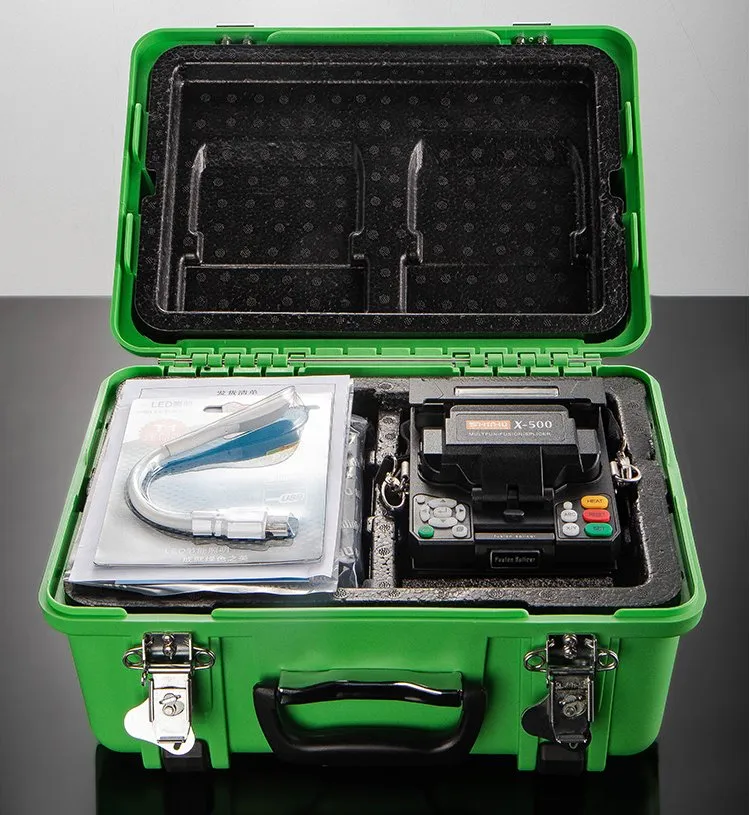

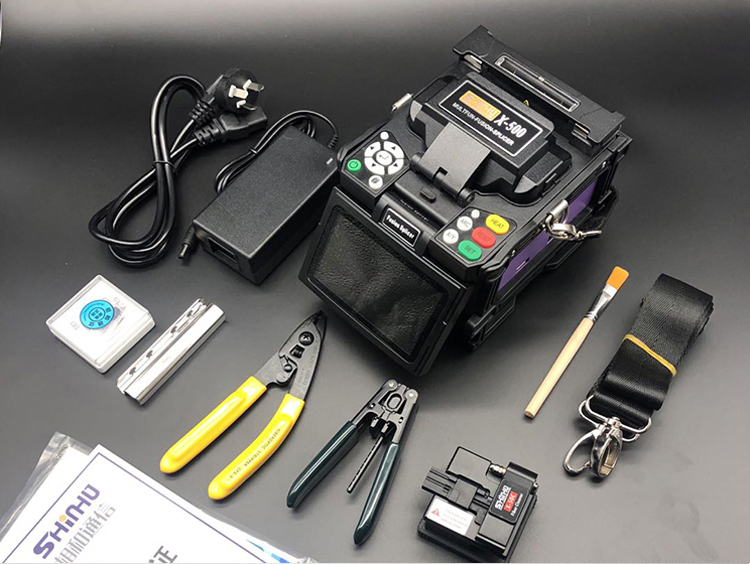

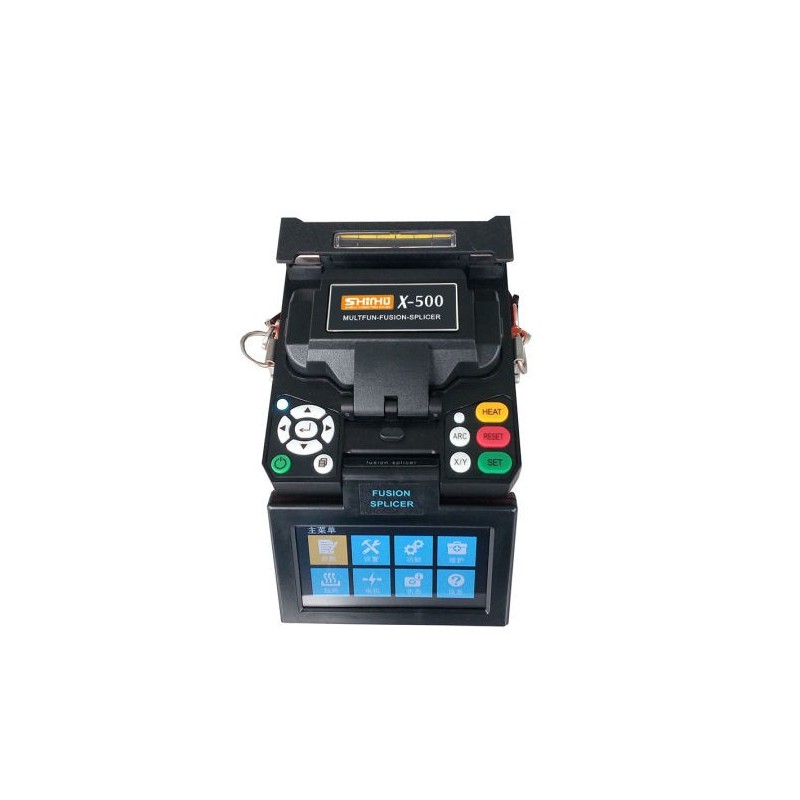

The Shinho X-500 Fusion Splicer is a compact and reliable 4-motor core alignment machine designed for precise and efficient fiber splicing. It delivers 7-second splicing and 26-second heating, ensuring fast field operations. With ultra-low splice loss, a 5200 mAh battery supporting 250+ cycles, and a 4.3″ touchscreen with dual cameras, it combines speed, accuracy, and portability for professional use.
Category |
Specification |
|---|---|
Size & Weight |
149 × 120 × 127 mm; 1.9 kg (incl. battery) |
Alignment |
4-motor core-to-core alignment |
Splice Time |
7 seconds |
Heating Time |
26 seconds |
Splice Loss (Typical) |
SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB |
Return Loss |
> 60 dB |
Fiber Types |
SM, MM, DS, NZDS, G.657 |
Fiber Diameter |
Cladding: 80–150 µm; Coating: 160–3000 µm |
Cleaved Length |
5–16 mm (<250 µm coating); 16 mm (250–1000 µm coating) |
Programs |
40 splice programs |
Operation Modes |
Manual / Automatic; Auto-heating |
Display & View |
4.3″ color touchscreen LCD; dual camera view |
Magnification |
320× (single axis), 160× (dual axis) |
Storage |
8,000 splice records |

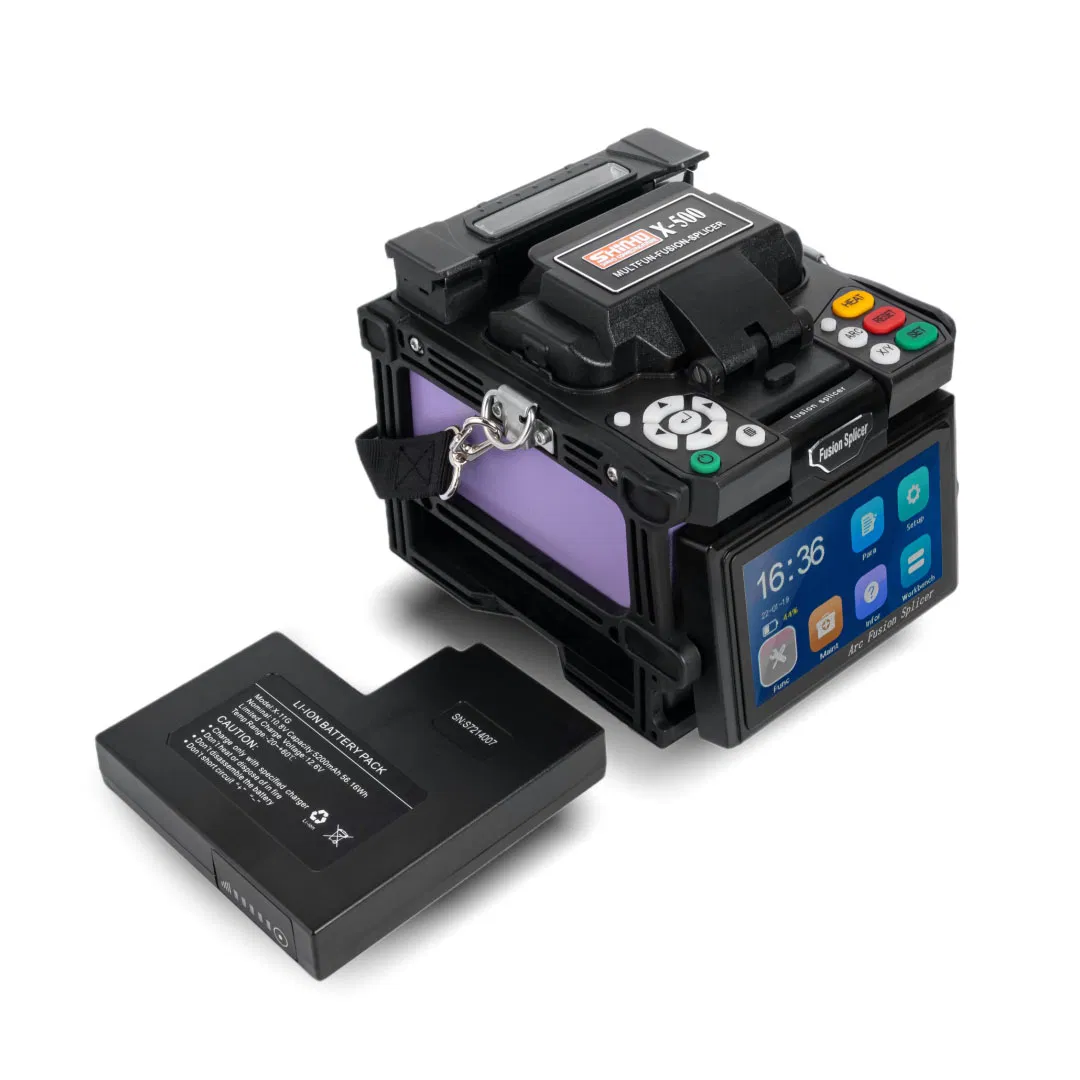

Battery |
5200 mAh Li-battery; ~250 cycles per charge |
Power Supply |
AC 100–240 V, 50/60 Hz; Output: 11–13.5 V |
Electrode Life |
> 4,000 arc discharges; replaceable |
Interface |
GUI menu; USB-2.0 for data/software |
Tension Test |
1.8–2.2 N |
Operating Conditions |
Altitude: 0–5000 m; Humidity: 0–95%; Temp: –10 °C to +50 °C; Wind: up to 15 m/s |
