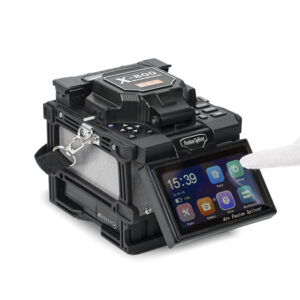

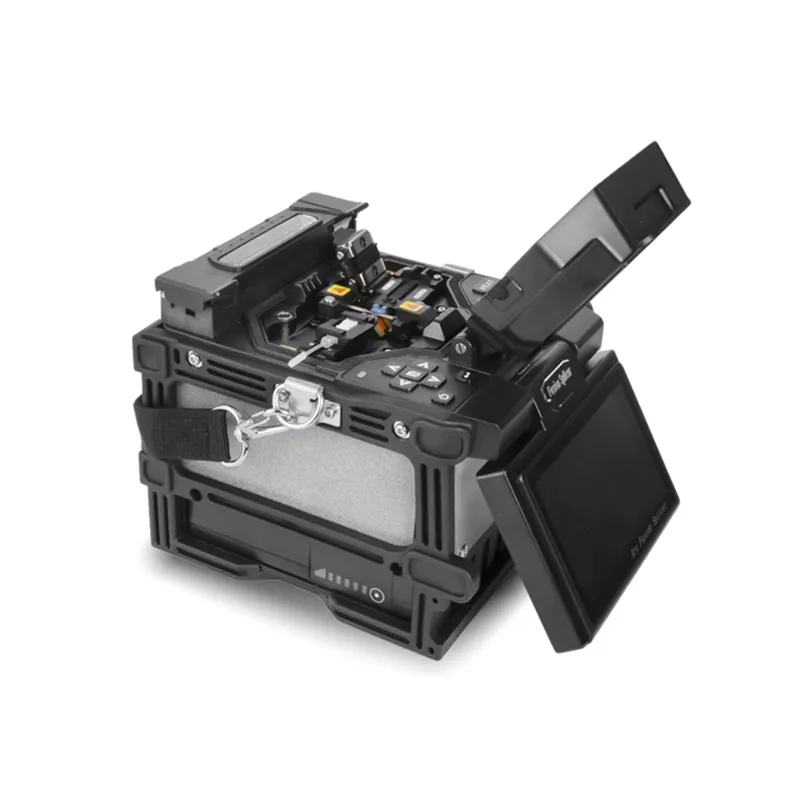

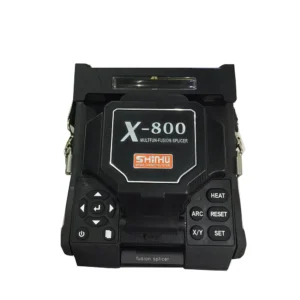

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine - Image 2

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine - Image 3

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine - Image 4

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine - Image 5

Shinho X-800 Handheld FTTX/FTTH Fiber Fusion Splicer Splicing Machine

Original price was: ₨ 190,000.Current price is: ₨ 184,999.

More Details

Product Details

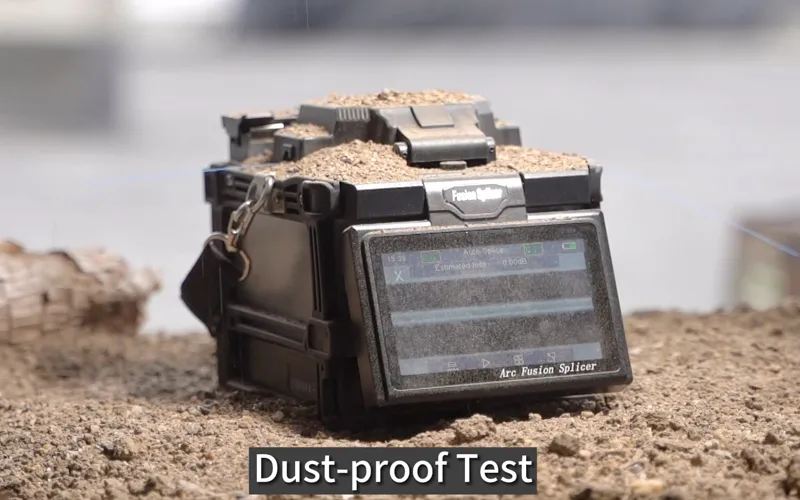

The Shinho X-800 is a high-performance core alignment fusion splicer designed for precision, speed, and durability. With 6s splicing, 15s heating, and advanced 6-motor alignment, it ensures highly accurate and stable results. Its rugged build, long battery life, and user-friendly design make it ideal for both fieldwork and lab applications.

Category	Specification
Size & Weight	149 × 120 × 127 mm; 1.9 kg (with battery)

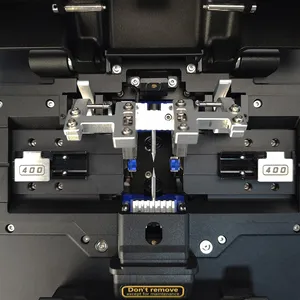

Alignment	6-motor core alignment
Splice Time	6 seconds
Heating Time	15 seconds
Splice Loss (Typical)	SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZDS: 0.04 dB
Return Loss	> 60 dB
Fiber Types	SM, MM, DS, NZDS, G.657
Fiber Diameter	Cladding: 80–150 µm; Coating: 160–3000 µm
Cleaved Length	5–16 mm (<250 µm coating); 16 mm (250–1000 µm coating)
Programs	100 splice, 30 heating

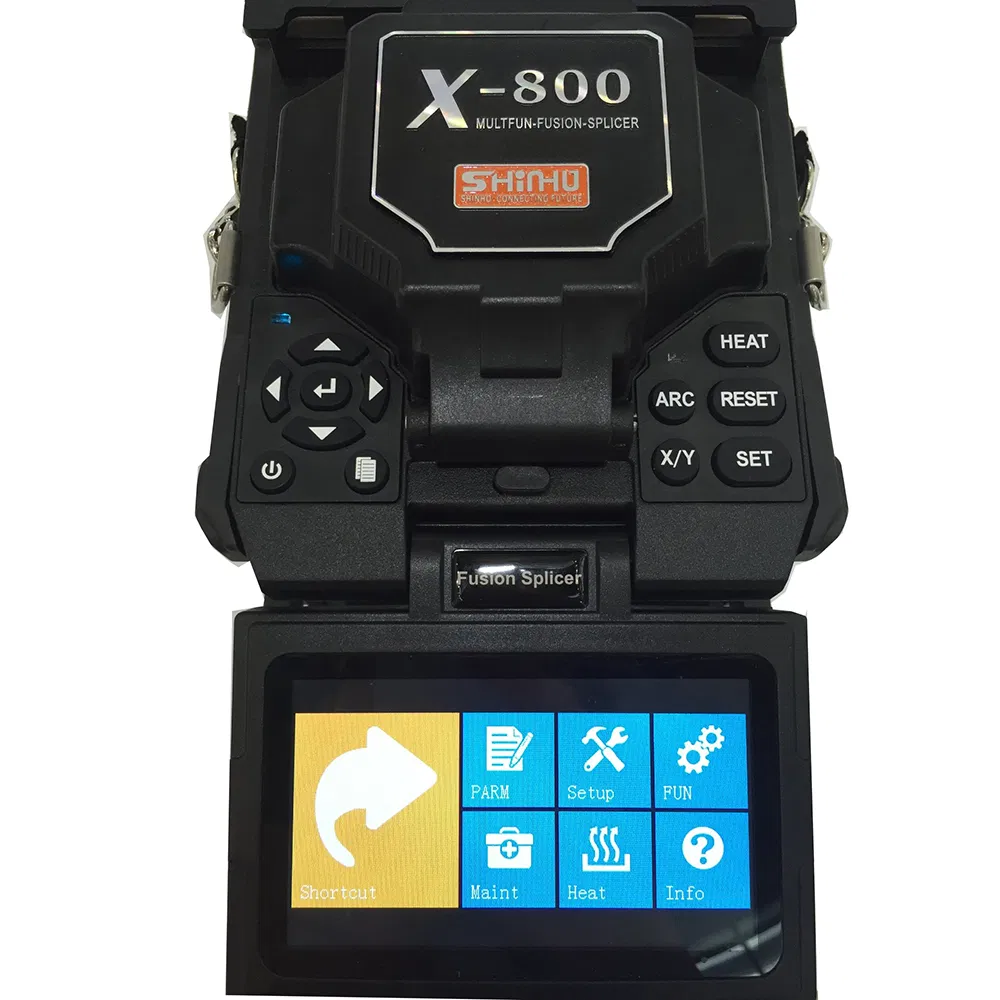

Display & View	5″ color LCD screen; 3-camera system
Magnification	400× (single axis), 200× (dual axis)
Storage	10,000 splice records, 1000 images
Battery	6800 mAh Li-battery; ~280 cycles per charge
Power Supply	AC 100–240 V, 50/60 Hz; DC 11–13.5 V
Electrode Life	> 5000 arc discharges
Interface	USB-2.0 for data/software
Tension Test	1.8–2.2 N
Operating Conditions	Altitude: 0–5000 m; Humidity: 0–95%; Temp: –10 °C to +50 °C
