Original price was: ₨ 163,000.₨ 156,999Current price is: ₨ 156,999.

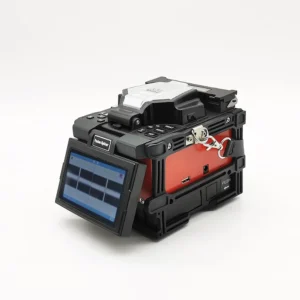

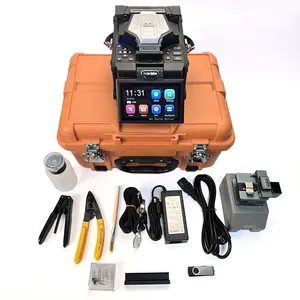

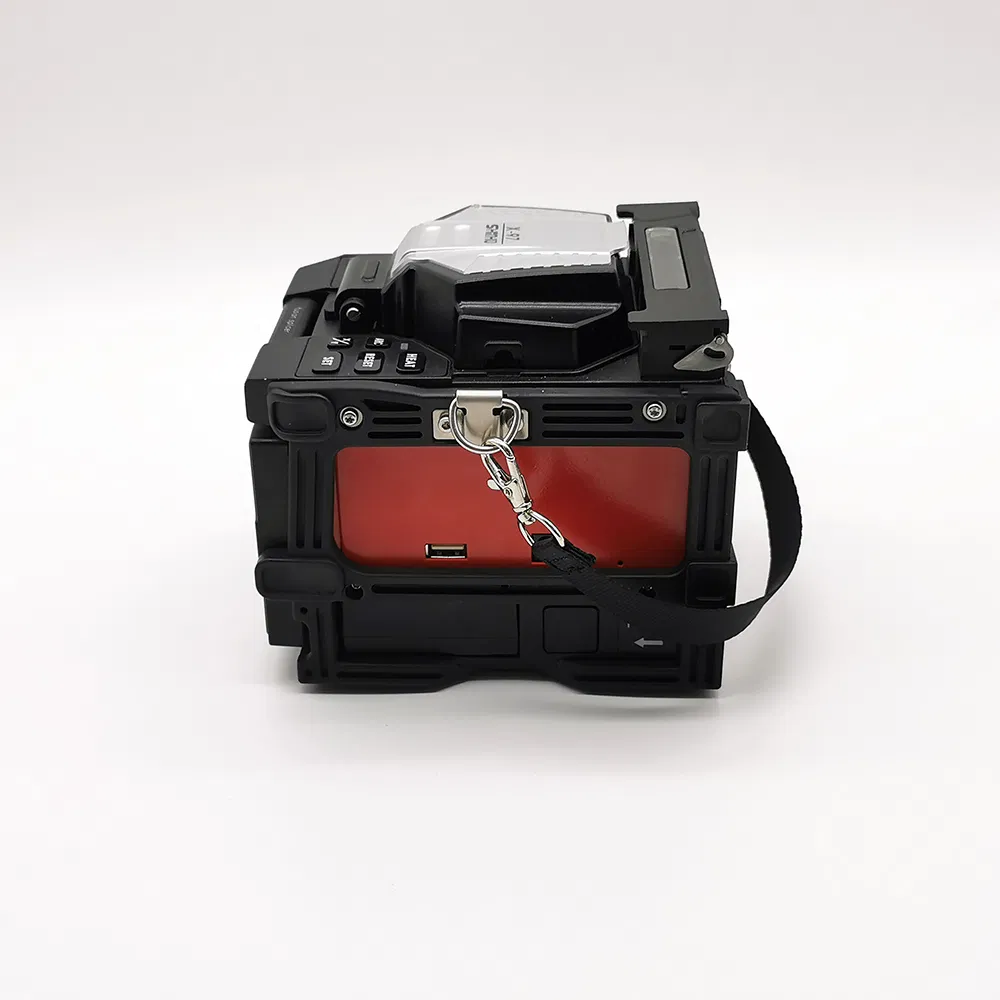

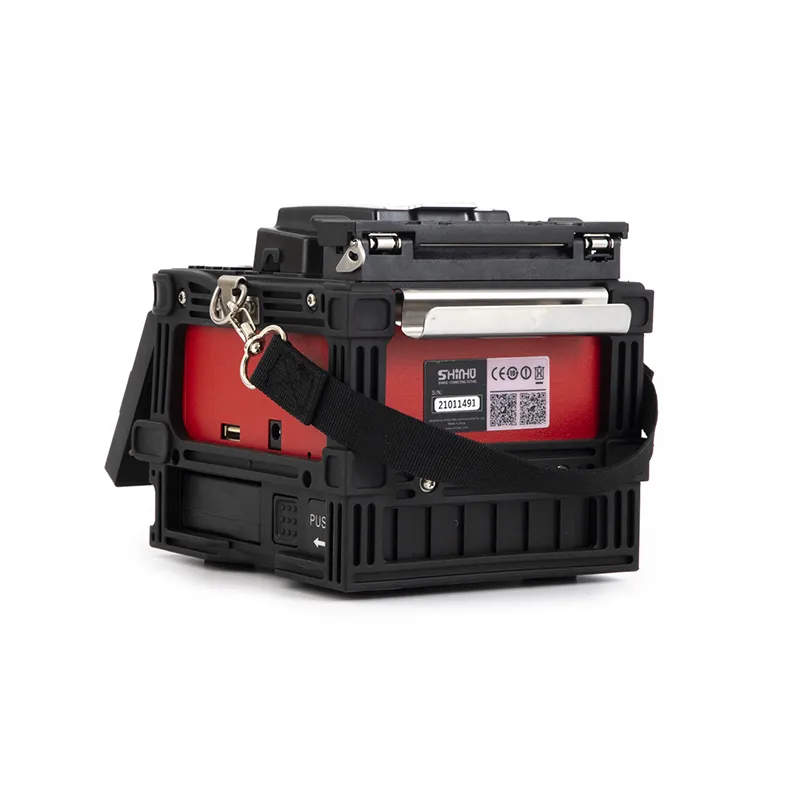

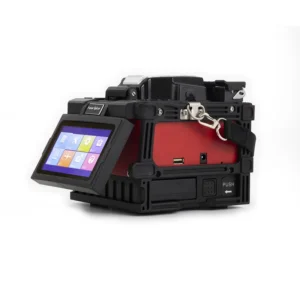

The Shinho X-97 is a handheld fusion splicer engineered for reliable FTTx/FTTH fiber installations. Its compact design delivers fast performance with ~8-sec splicing and ~26-sec heating, utilizing precision core-to-core alignment. Equipped with a long-lasting battery and rugged build, it’s perfect for demanding field work. A cost-effective and dependable choice for every fiber technician.
| Category | Specification |
|---|---|
| Size & Weight | 149 × 120 × 127 mm; 1.9 kg (with battery) |
| Alignment | Core-to-core digital alignment (PAS) |
| Splice Time | 7–8 seconds |
| Heating Time | 26 seconds (40 mm/60 mm sleeves) |
| Typical Splice Loss | SM: 0.02 dB |
| Return Loss | > 60 dB |
| Applicable Fibers | SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), G.657 |
| Fiber Sizes | Cladding: 80–150 µm; Coating: 160–900 µm |
| Cleaved Length | 10–16 mm (coating < 250 µm); 16 mm (250–1000 µm) |
| Splice Programs | 40 groups |
| Operation Modes | Manual / Automatic; Auto-heating |
| Display & View | 4.3″ color LCD; dual CMOS cameras |
| Magnification | 250× (X or Y); 125× (dual) |
| Storage | Up to 4,000 results |
| Tension Test | 1.8–2.2 N |
| Battery | 5,800 mAh (pluggable Li-ion); ~200 cycles |
| Electrode Life | > 4,000 discharges; replaceable |
| Interfaces | GUI menu; USB 2.0 for data/software |
| Power Supply | AC 100–240 V; output 11–13.5 V |
| Operating Conditions | Altitude 0–5,000 m; Humidity 0–95%; Temp -10 °C to +50 °C; Wind ≤ 15 m/s |
